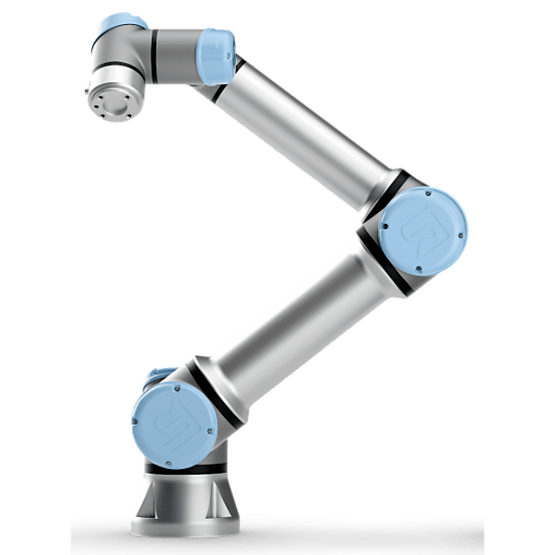

Universal Robots UR5e Collaborative Robot Arm

Universal Robots UR5e Collaborative Robot Arm

Part #: PR-UR-005-0000

Brand: Universal Robots

$38,363.00 USD

Availability: Ships next day

Short Description

The UR5e is a lightweight small-sized e-series cobot from Universal Robots with a 5 kg payload and 850mm reach. Its footprint and payload capabilities make it a good fit for lifting, placing and performing operations with light to medium sized objects that could go further than an average operator’s reach, while ensuring a safe collaboration between humans and machines.

Technical Specifications
Performance
  • Reach: 850 mm
  • Repeatability: 0.03 mm
  • Max Payload: 5 kg
  • Robot Weight: 20.6 kg
  • Degrees of Freedom: 6
  • Max Average Power Consumption: 570 W
  • Typical Average Power Consumption: 200 W
Movement
  • J1 Movement Range: 360 degrees
  • J2 Movement Range: 360 degrees
  • J3 Movement Range: 360 degrees
  • J4 Movement Range: 360 degrees
  • J5 Movement Range: 360 degrees
  • J6 Movement Range: 360 degrees
Features
  • Robot Certified Standards: EN ISO 13849-1, PLd Category 3, and EN ISO 10218-1
  • Robot IP Rating: 54
  • Controller Certificatied Standards: ISO 14644-1 Class Cleanroom 6
  • Controller IP Rating: 44
  • Warranty: 18 Months
  • Available Add On Service: Field Evaluation Service for Canada (CSA SPE 1000) Add: PR-UR-800-0001
Controller
  • Controller Power Source: 100-240VAC, 47-440Hz
  • Controller Weight: 12 kg
  • Controller Dimensions: 460 mm x 449 mm x 254 mm
  • Controller Digital ports: 7 in, 7 out
  • Controller Analog ports: 2 in, 2 out
  • Robot to controller cable length: 6 m
